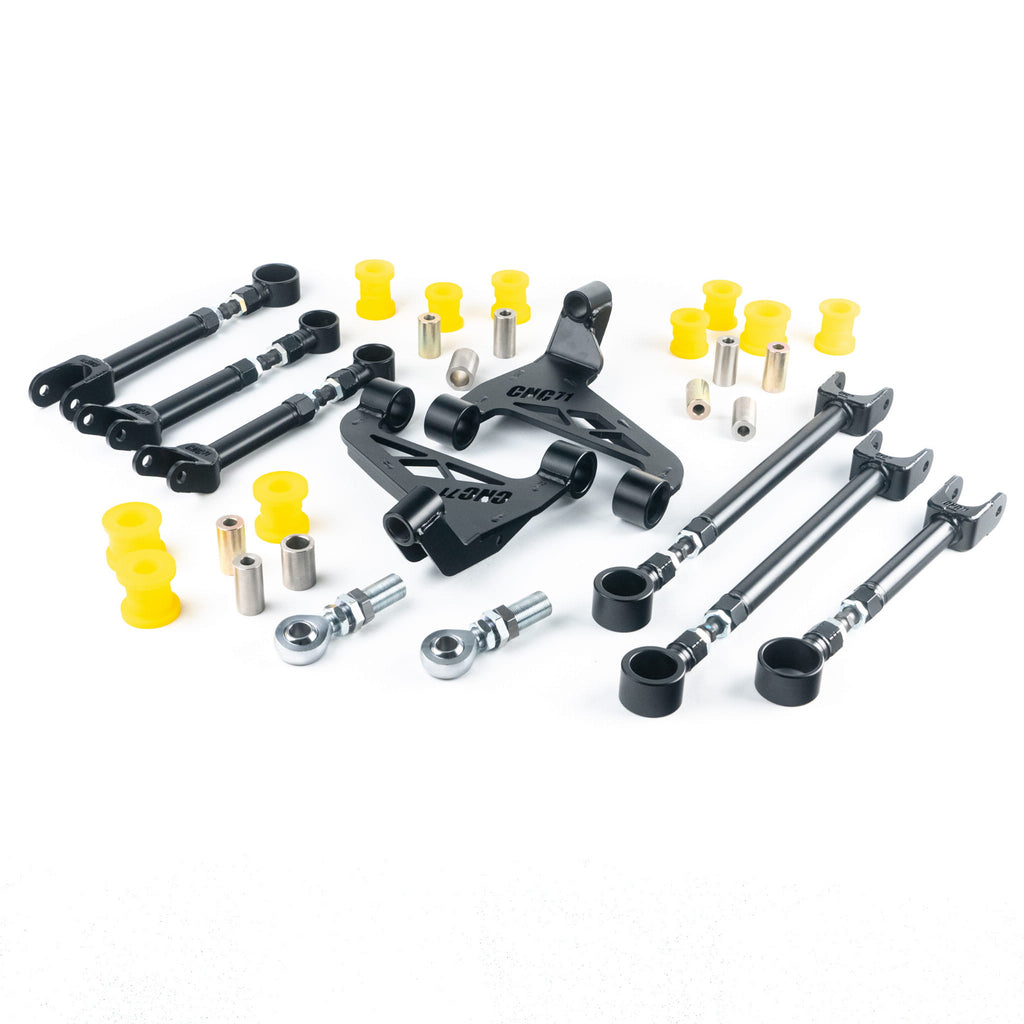

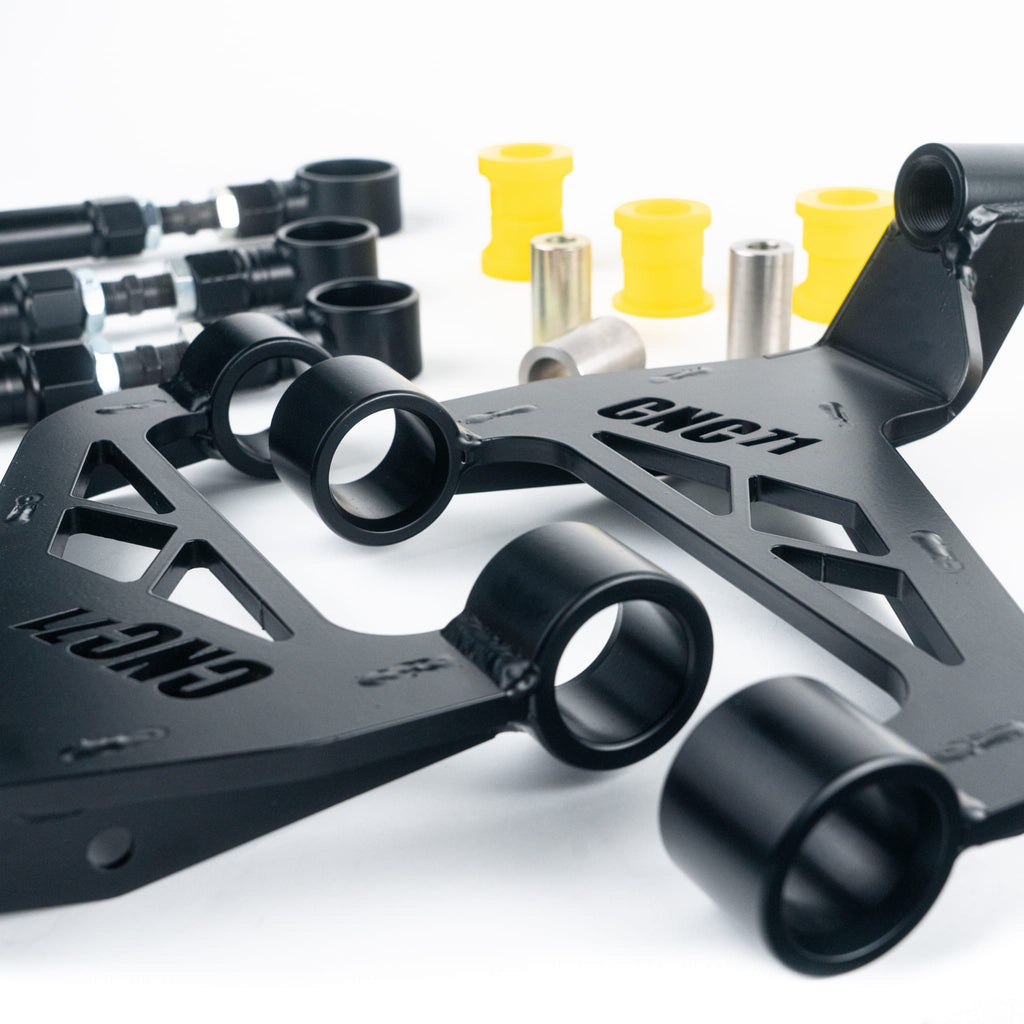

Adjustable Rear Suspension Kit Nissan 350z / Infiniti G35

Complete set of adjustable rear suspension arms for the Nissan 350Z from CNC Motorsport.

Made of S355 steel, made on CNC machines, welded using MAG and TIG methods.

100% matched to the standard steering knuckle pin, adapted for polyurethane bushings.

Adjustment using tensioners.

Matte black powder coating.

With CNC71 Motorsport's adjustable rear suspension control arms for the Nissan 350Z, it's possible to fine-tune the rear suspension to best suit the driver's driving style. This is especially useful when preparing the car for motorsports such as drifting and time attack. A set of adjustable struts is also an ideal solution for lowering the car to achieve the desired effect of tuning the wheels to the body, which is perfect for the lowered suspension.

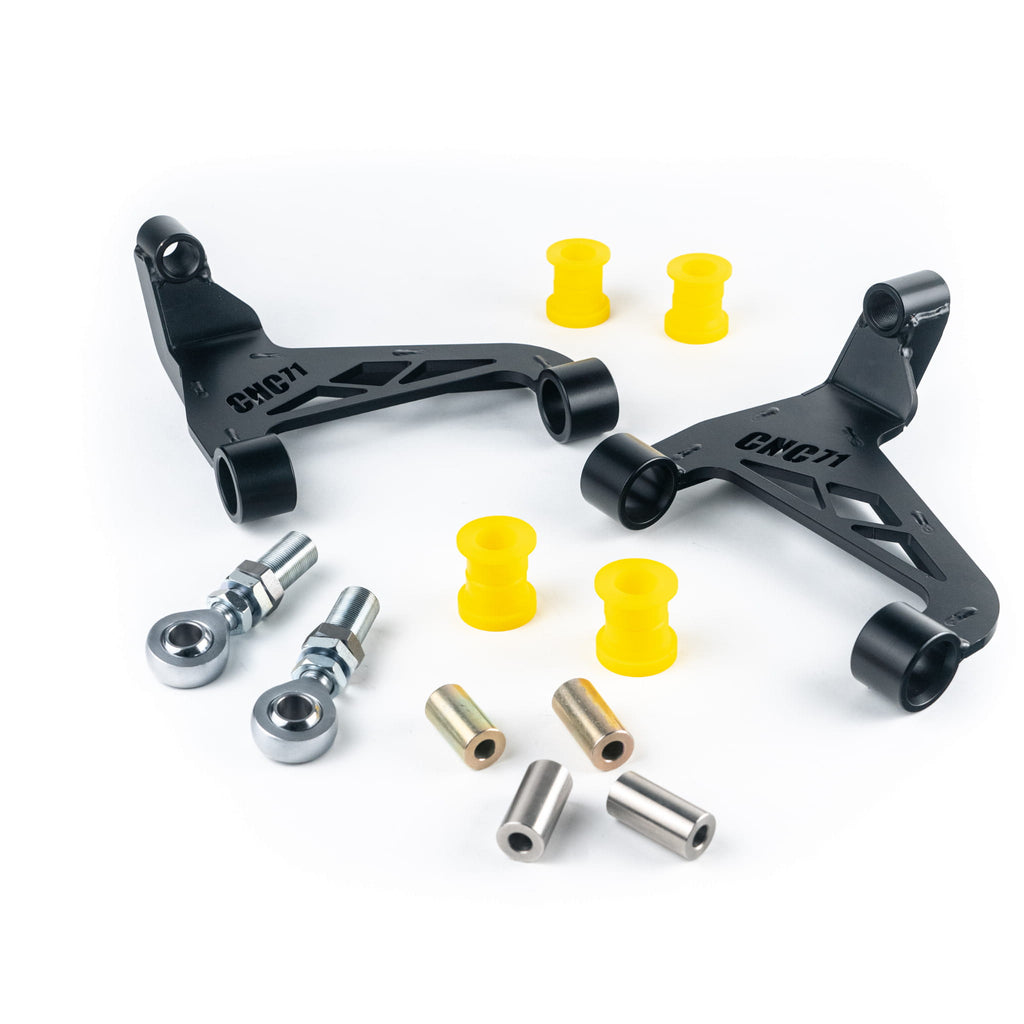

Nissan 350Z Adjustable Rear Upper Control Arms:

Instead of the original rubber bushings, polyurethane bushings with a hardness of 90 Sha, adapted for motorsports, were used. The swing arm mount is based on a ball bearing.

With its "+" and "-" adjustment range, the CNC71 Motorsport swing arm for the Nissan 350Z allows you to achieve maximum vehicle traction on the driveshaft. The total adjustment range is approximately 30 mm (280 mm - 310 mm), of which, compared to the stock swing arm (300 mm), it can be shortened by 20 mm or extended by 10 mm.

The upper double axle allows you to primarily change the camber angle of the wheel. Full adjustability is only possible with a complete set of rear suspension arms for the Nissan 350Z from CNC71 Motorsport.

The set of batteries includes:

• Adjustable rear upper axle shaft, LEFT - 1 piece.
• Adjustable Upper Rear Bison RIGHT - 1 piece.
• Uniball M18 - 2 pieces
• Uniball insert assembly (cross mount)
• Locking nuts for uniball
• Set of screws
• Special insert to adjust the length of the swing arm

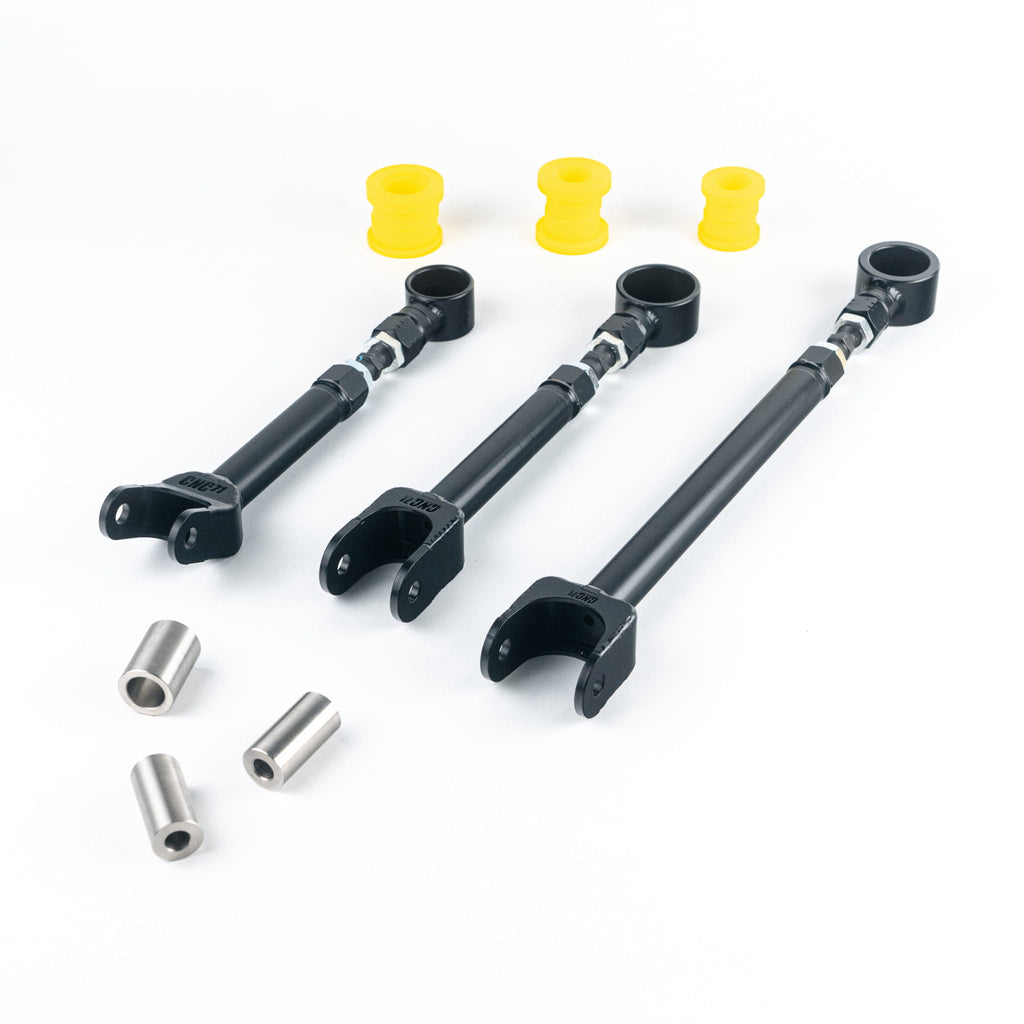

Nissan 350Z Adjustable Rear Traction Bars:

Instead of the original rubber bushings, polyurethane bushings with a hardness of 90Sha, adapted for motorsport, were used.

With its "+" and "-" adjustment range, the CNC71 Motorsport swing arm for the Nissan 350Z allows you to achieve maximum vehicle traction on the driveshaft. The total adjustment range is approximately 30 mm (12.25" - 14.5"), of which the swing arm can be shortened by 10 mm or extended by 20 mm compared to the stock swing arm (13.32" - 14.5").

The traction rod allows you to primarily change the toe and camber, but full tuning can only be achieved by using a complete set of rear suspension arms for the Nissan 350Z from CNC71 Motorsport.

The pull rod set includes:

• Adjustable Rear Traction Headband - 2 Pieces
• locking nuts - 2 pieces
• Set of screws
• Aces

Nissan 350Z Adjustable Rear Lower Control Arms:

Instead of the original rubber bushings, polyurethane bushings with a hardness of 90Sha, adapted for motorsport, were used.

With its "+" and "-" adjustment range, the CNC71 Motorsport swing arm for the Nissan 350Z allows you to achieve maximum vehicle traction on the driveshaft. The total adjustment range is approximately 30 mm (1.14" - 13.02"), of which the swing arm can be shortened by 10 mm or extended by 20 mm compared to the stock swing arm (12.25" - 13.02").

The adjustable lower axle allows you to primarily change the toe and camber, but full adjustment can only be achieved by using a complete set of rear suspension arms for the Nissan 350Z from CNC71 Motorsport.

The lower wishbone set includes:

• Adjustable Rear Lower Caster - 2 Pieces
• locking nuts - 2 pieces
• Set of screws
• Aces

Nissan 350Z Adjustable Rear Coilover Links:

Instead of the original rubber bushings, polyurethane bushings with a hardness of 90Sha, adapted for motorsport, were used.

With its "+" and "-" adjustment range, the CNC71 Motorsport coilover linkage for the Nissan 350Z allows you to maximize vehicle traction on the drive axle. The total adjustment range is approximately 30 mm (435 mm - 465 mm), of which the swing arm can be shortened by 10 mm or extended by 20 mm compared to the stock swing arm (445 mm).

The coilover link primarily allows you to change caster and camber, but full adjustability can only be achieved by using a complete set of rear suspension arms for the Nissan 350Z from CNC71 Motorsport.

The coil link set includes:

• Adjustable Rear Coilover Link - 2 Pieces
• locking nuts - 2 pieces
• Set of screws
• Aces
